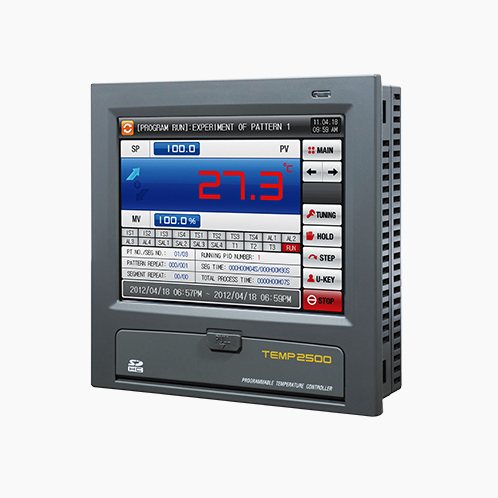

TEMP2500

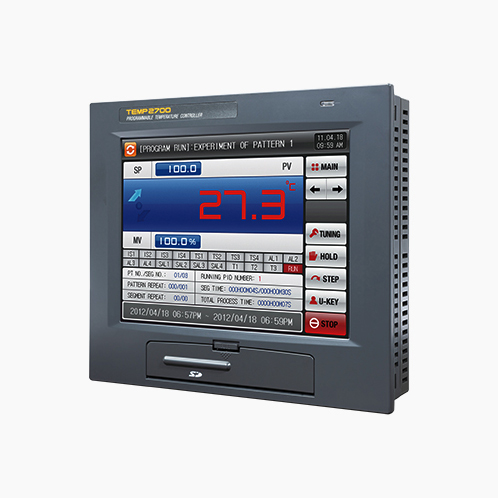

TEMP2700

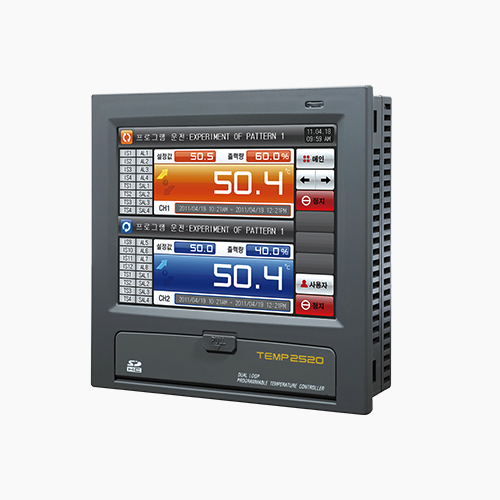

TEMP2520

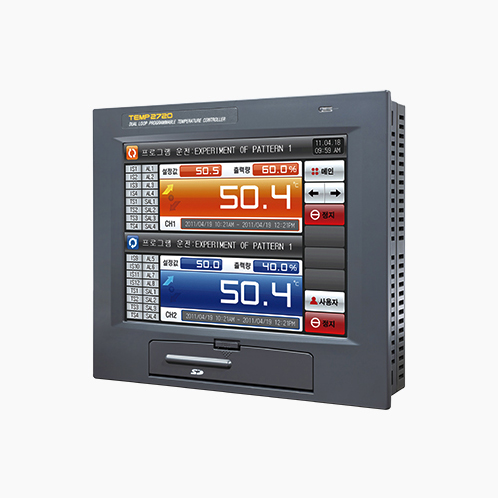

TEMP2720

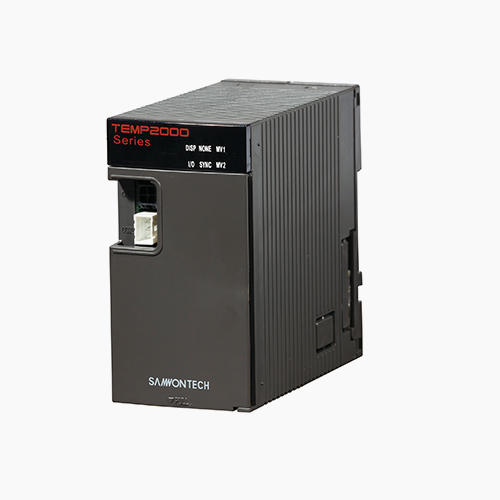

CONTROL

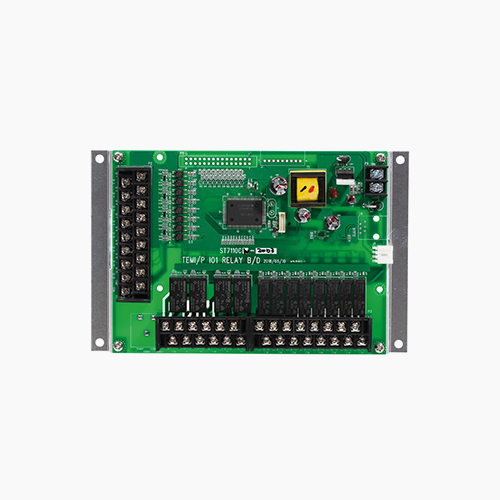

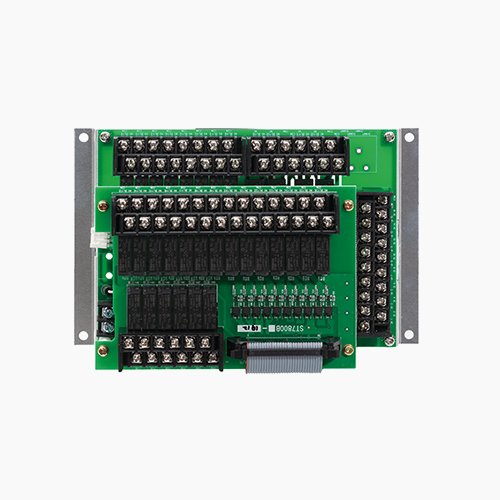

I/O1 Borad
I/O2 Borad

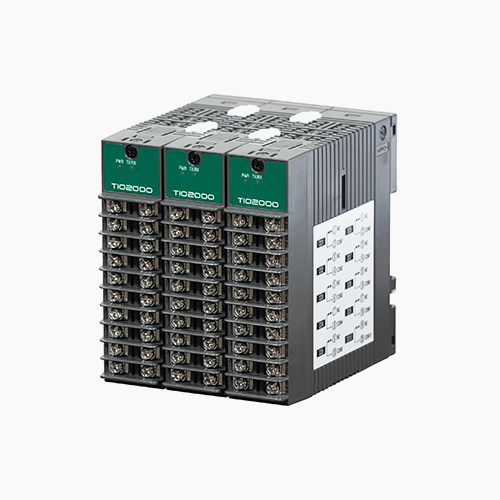

TIO2000
Touch type programmable temperature controller
TEMP2000 SERIES
It is a dual/single loop programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.
-
Various patterns
Fix and program control are possible and when program control, possible to set 80 petterns/1200 segments
-
High accuracy
Precision control with 18bit A/D convertor
±0.1% of full scale ±1 digit
-
Control PID of a variety
Temperature control PID group(5 Zone PID + 1 Deviation PID or 6 Seg PID)Zone, Deviation PID etc. Various PID offer
-
Various unit displays
Available 12 kinds of various unit to display under DCV sensor (˚C, ˚F, EDIT, %, ㎩, ㎪, %RH, ㎷, V, Ω, mmHg, kgf)
-
Heating·cooling control
Heat and cooling control by equipments (Option)
-
Touch screen interface
Easy access to setup and operate with touch screen
-
Digital recorder function
Real-time monitoring displays as trend graph and easy data acquisitions of PV and SP No additional recorder required
-
SD memory card support
The pattern and parameter can be up/download via SD memory card
-
Multi-language system
Supporting of various languages of korean, english, Chinese, Japanese and russian
-
Powerful communication
Basic include RS232C/485 serial communication (Communication speed 115,200bps) Ethernet support option
-
Free PC software
Free PC multi-monitoring software for communication and SD viewer for data management of SD data
-
Operation time management
Display of the operation starting time, estimated termination time and operation time up to now
Supporting SD memory card
-
Selectable Initial screen
User can choose appropriate initial screen
-
Editable Error Screen
Self-designed picture can be used
-
Electronic Album
Company and product profiles can be displayed
-
Data recording with SD card
Data acquisition of process value.
Up/Download parameter and pattern data.
Logical signal set
The combination of the various signals is possible and logical output is possible(AND, OR, A/B contact, Timer operation possible)

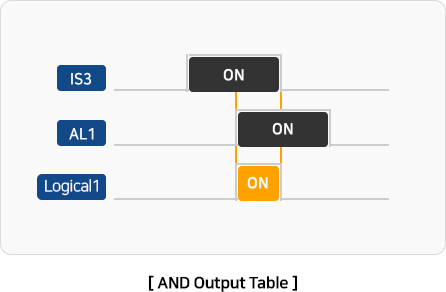

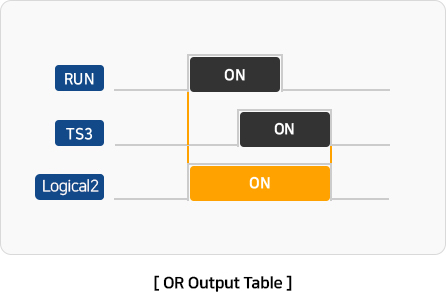

An example of the Logical signal behavior

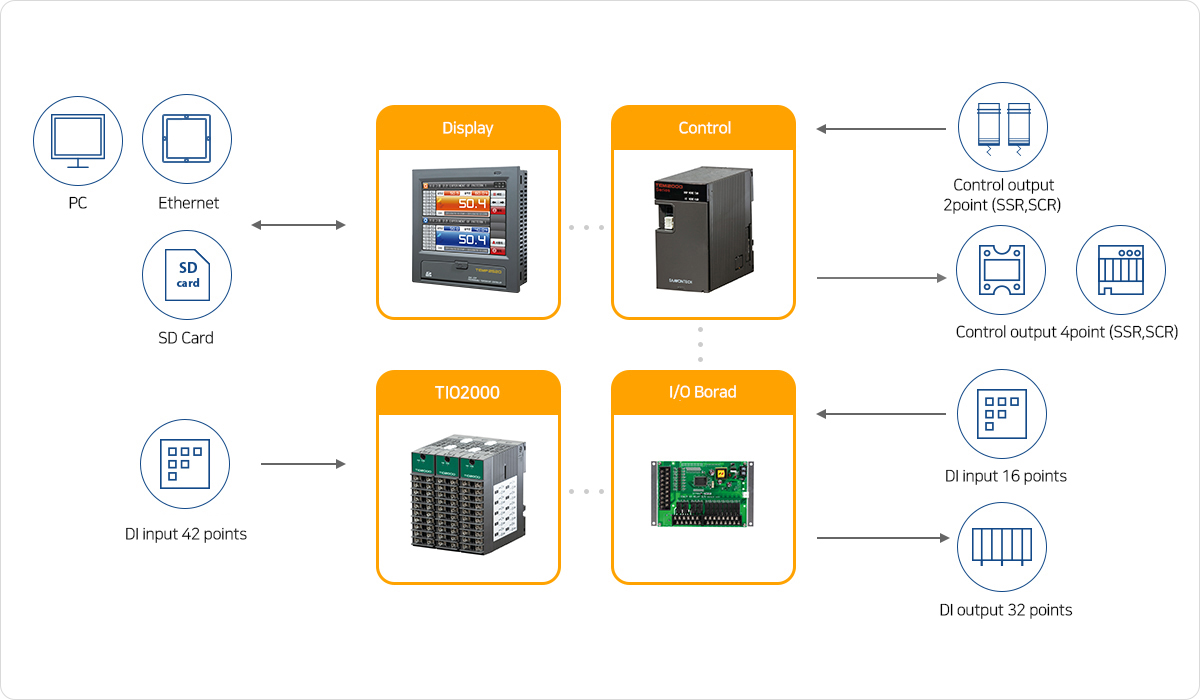

Separated hardware
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Various system configurations and work ability
| Group | Item | Single loop | Dual loop | TIO2000 | ||
|---|---|---|---|---|---|---|
| TEMP2500 | TEMP2700 | TEMP2520 | TEMP2720 | |||
| Screen | Display | 5.7* TFT-LCD |
7.5* TFT-LCD |
5.7* TFT-LCD |
7.5* TFT-LCD |
- |
| Resolution | 640(W) x 480(H) |
- | ||||
| Language | Korean, English, Chinese (Simplified, Traditional), Japanese, Russian |
- | ||||
| Logo screen | Available to customize initial logo screen by user |
- | ||||
| User screen | 16 customized user interface for screen saver |
- | ||||
| Mount type | PANEL mount, VESA mount(MIS-D 75) |
- | ||||
| Analog input | Number of point | 1point(Universal input) |
2point(Universal input) |
- | ||
| Type | TC |
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
- | |||
RTD |
Pt100(IEC), Jpt100(JIS), 1/100 Displayable |
- | ||||
DCV |
0.4~2V, 1~5V, 0~10V, -10~20mV, 1~100mV (4~20mA, 0~20mA : Load resistor 250Ω, 500Ω Attach) Scale : -1999 ~ 30000 |
- | ||||
| Sampling time | 250ms |
250ms/Channel |
- | |||
| Input accuracy | ±0.1% of full scale ±1 digit |
- | ||||
| Bias | 8points of piece and full bias |
- | ||||
| Display unit | TC/RTD |
˚C, ˚F |
- | |||
DCV |
˚C, ˚F, Blank, %, ㎩, ㎪, %RH, ㎷, V, Ω, mmHg, kgf |
- | ||||
| Analog output | Output specification (Max. 4points) |
Voltage output(SSR) 4points |
ON voltage : 24V DC(Load resistor : Min. 600Ω/Pulse width : Min. 5ms) |
- | ||
Current output(SCR) 4points |
4~20mA DC(Load resistance : Max. 600Ω) |
- | ||||
| Output type | Control output/Transmission output(PV, SP)/Auxiliary output |
- | ||||
| Output accuracy | ±0.3% (D/A 14bits) |
- | ||||
| Digital input | Contact point specification |
Basic 16points(Contact point capacity : Max. 12V DC, 10mA) Selection of operation for A or B point
|
Max. 42point, 14point/UNIT(3sets connectable) Contact capacity : Max. 12V DC, 10mA |
|||
| Contact point function |
Run/Stop/Hold/Step, selectable run patterns, set DI detect delay time, select DI error monitor(text or picture)
|
- | ||||
| Digital output | Contact point quantity | 12points base(Additional 20points by option) |
- | |||
4points base C-contact relay |
Normal open(Max. 30V DC/1A, 250V AC/1A) |
- | ||||
Normal close(Max. 30V DC/1A, 250V AC/1A) | - | |||||
8points base A-contact relay |
Normal open(Max. 30V DC/1A, 250V AC/1A) |
- | ||||
Additional 20points A-contact relay(IO2 Option) |
- | |||||
| Signal type | Inner signal(8points/CH) On/Off signal(7points/CH) Logical signal(3points) Error signal(1point/CH) |
- | ||||
User signal(1point) Time signal(8points/CH) Fix· Programmable end signal(2points/CH) |
- | |||||
Dl signal(16points) Wait signal(1point/CH) Ref signal(2points/CH) Alarm signal(4points/CH) |
- | |||||
Seg alarm signal(4points/CH) Manual signal(12points) Sensor open signal(1point/CH) Run signal(1point/CH) |
- | |||||
Up· Soak· Down signal(3points/CH) Fix timer signal(1point/CH) |
- | |||||
| Program | Pattern/Segment | 80 Patterns/1200 Segments |
80 Patterns(40/CH1, 40/CH2)/1200 Segments |
- | ||
| Segment time | Max. 999hours 59minutes 59seconds |
- | ||||
| Function | Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode |
- | ||||
| Repetition | Pattern/Segment repeat operation |
- | ||||
| PID control | PID groups | 6 PID groups(5 Zone PID groups + 1Deviation PID group or 6 Seg PID groups of each channel) |
- | |||
| PID type | Zone PID, Deviation PID, Seg PID |
- | ||||
| Auxiliary functions | Changeable tuning point, PID tuning gain, Selectable disease control code |
- | ||||
| Data back-up | Storage media | SD/SDHC card(FAT32 Format) |
- | |||
| Logging function | Program pattern/Parameter can be backup and restored, PV/SP can be stored. |
- | ||||
| Communication | Interface | Basic : Flexible to change between RS485/RS232C by switch, Max. 31 nodes. Max. 115,200 bps, |
- | |||
Option : Ethernet(TCP/IP) *In case of selection of ethernet, RS232C/485 is not available |
- | |||||
| Protocol | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Sync-Master(CH1, CH2 Select) |
- | ||||
| Power | Rated voltage | 24VDC 22VA Max. |
24V DC 1.3VA Max. | |||
| Lithium battery | For setup data retention(CR2032) |
- | ||||
Model code (TEMP2000)
| Model | Additional code | Contents | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TEMP2 | □ | □ | 0 | - | □ | □ | / | □ | / | □ | |
| Size |
5 | 5.7inch (IP65 certification) |
|||||||||
| 7 | 7.5inch |
||||||||||
| Control channel |
0 | Single loop(1channel control) |
|||||||||
| 2 | Dual loop(2channels control) |
||||||||||
| Control method |
0 | Normal control |
|||||||||
| 1 | Heating·Cooling control |
||||||||||
I/O board |
0 | I/O1 (DO12points, DI16points) |
|||||||||
| 1 | I/O1, 2 (DO32points, DI16points) |
||||||||||
SD card |
SD | SD card(ST'D) |
|||||||||
Ethernet communication |
- | None |
|||||||||
| CE | Ethernet(TCP/IP) |
||||||||||
Model code (TIO2000)
| Model | Additional code | Contents | |
|---|---|---|---|
| TIO2000 | - | □ | |
DI |
A | DI 14points |
|
