Automotive Test Chambers

Accelerated Corrosion Test Facility

-

  • Automotive Environmental test Facility (Salt Spray CHAMBER)

    Rain Simulation test Facility

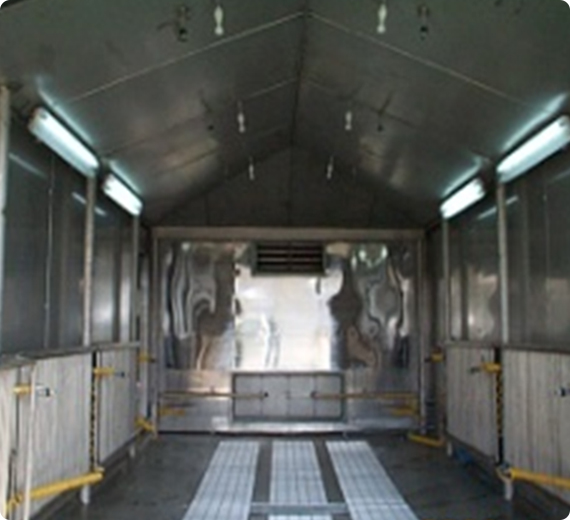

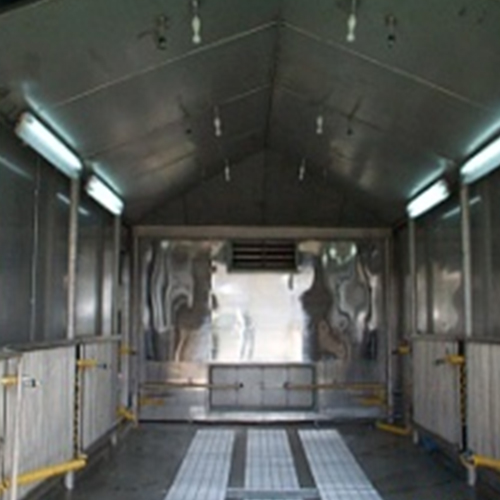

Automotive Environmental test Facility (Salt Spray CHAMBER)



Basic Spec.

Temp.
20 ~ 60 ℃
Humi.
Max. 95% RH
Salt Spray
SAE Standard
Size
Depends on test specimen For vehicle test(6.6m x 4m x 2.6m)

A possible test

Constant temperature and humidity test, heat resistance test, moisture resistance test, rainfall reproduction test, salt spray test, etc.

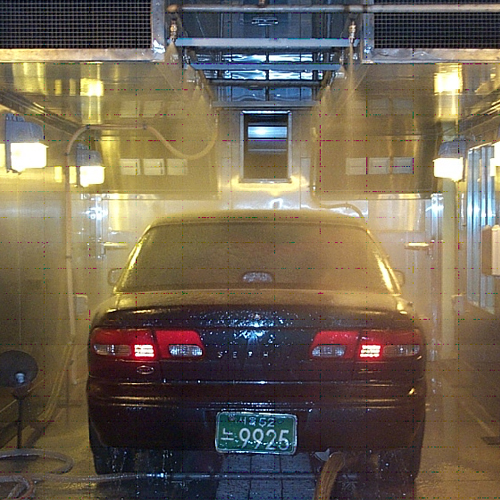

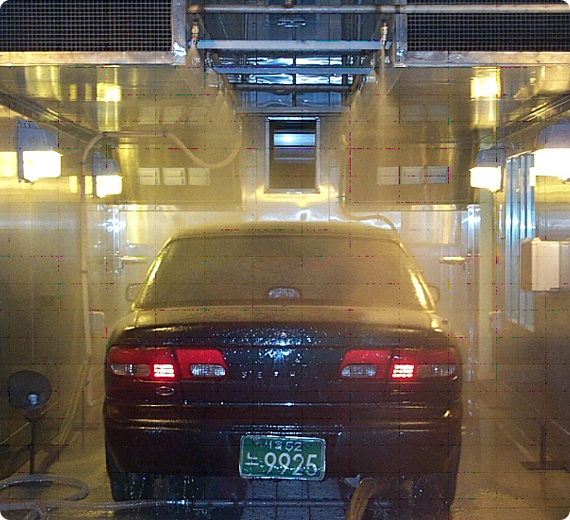

Rain Simulation test Facility



Basic Spec.

Temp.
0 ~ +60 ℃
Humi.
30 ~ 98% RH
Rainfall
Max 400mm/Hr
Wind Speed
120kph
Size
Depends on test specimen For vehicle test (7m x 3m x 2.2m)

A possible test

Constant temperature and humidity test, moisture resistance, watertight performance, rainfall test etc.
