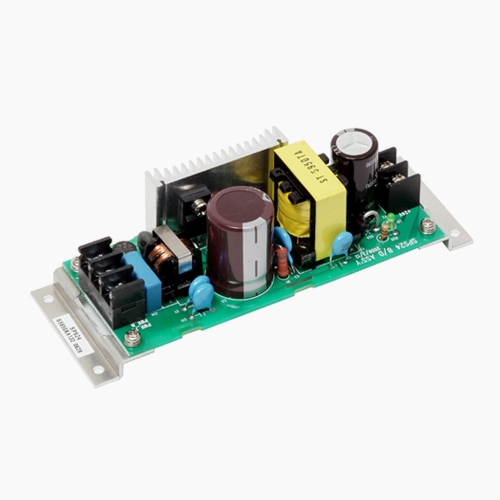

SPS24
24V DC Power supply
SPS24
It is a switching power supply that converts input AC power to output DC power.
-
Input : 85~2a40VAC, Output : 24VDC(0.8A)
.
| Group | Specification | |
|---|---|---|
| Input | Power | 85~250VAC |
| Frequency | 50/60Hz |
|
| Output | Current | 1A |
| Power | 24VDC |
|
| Ripple | Max. 240mVp-p |
|
| Specification | In/Output | 1500VAC 1MIN 500VDC 100MΩ (Room temperature) |
| Operating environment | -10~+50℃, 20~90%RH (Without condensation) |
|
| Storage environment | -20~+75℃, 20~90%RH (Without condensation) |
|
| Vibration | IN 3Min 10Hz 1.0G, Compete in a 3-axis direction orthogonal to the 30 minutes vibration |
|
| 1 | Dimension | Dimension |
