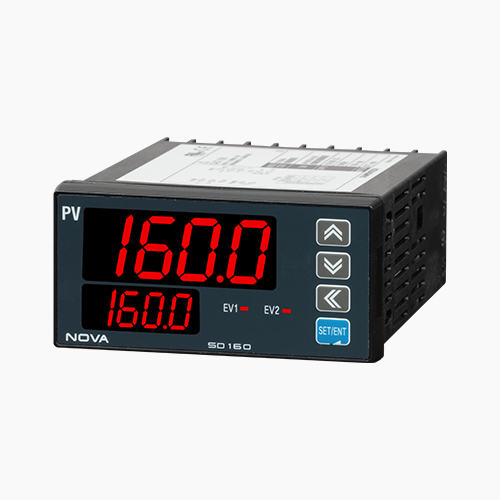

SD160

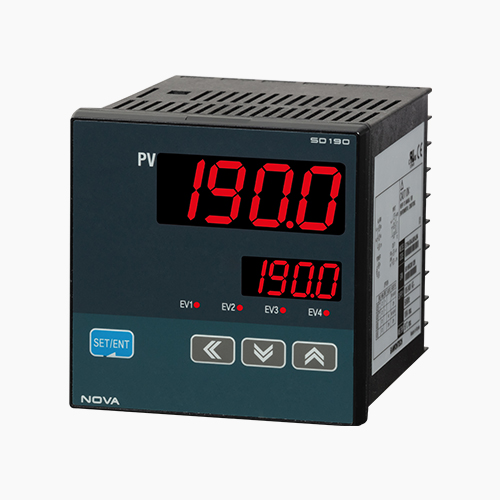

SD190
SD160

SD160

SD190

SD190

Economic digital indicator

NOVA100 SD SERIES

It is an economical universal digital indicator.

  • High accuracy control with 18bit A/D convertor ±0.2% of full scale ±1 digit

    Various communication protocol support(Modbus and etc.)

    2 points alarm output support as standard(Max.4 points)

    Memory and display function of high and low temperature value

    Input bias function

    PV retransmission output

Product Inquiry

Powerful Comm. Funtion

Protocol - PC LINK, MODBUS(ASCⅡ, RTU), SYNC Master, Slave in case of RS485 communication Max. 1.2Km, Max. 31 slave controller multi-drop

Group SD160 SD190
Size
96(W)×48(H)×100(L)
96(W)×96(H)×100(L)
PV display
Each 4 digits
Sampling time
250ms
Analog input Type/Accuracy
1point(Universal input) / ±0.2% of full scale ±1digit (Inquire separately for PTC and JPTB)
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ
RTD
PT100(IEC), JPT100(JIS), 1/100 Displayable
DCV
-10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC (4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach)
Analog output Type
Fixing 1 point
Output type
Retransmission output (PV) or Loop Power Supply
Ret
4 ~ 20mA DC (Resistance : Max. 600Ω)
Digital
output		 Quantity
A : 2 points
A : 2 points + 2 points
Specification
Max. 30V DC/1A, 250V AC/1A
Signal type
Alm 2 points
Alm 4 points
Communication
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Max. 19200bps
Power
100~240V AC, 50/60Hz, 10VA Max.

Model code

Model Additional code Contents Remark
SD1 □ 0 - 0 □ / □
Size
 9
96 * 96
6
96 * 48
Power
 0
100 ~ 240V AC
1
24V DC
Option
 RS
RS485
Att.1
RET
Retransmission output
Att.1
AML3
Relay 1point (190 only)
AML4
Relay 1point (190 only)
Att.1
Att.1) RS, RET, ALM4 options cannot be consolidated
1ManualInstruction manual
Communication manual
2CatalogueCatalogue
3DimensionDimension
4SoftwareSoftware
