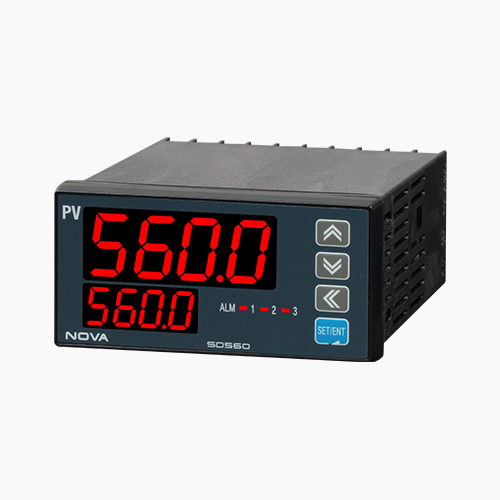

SD560

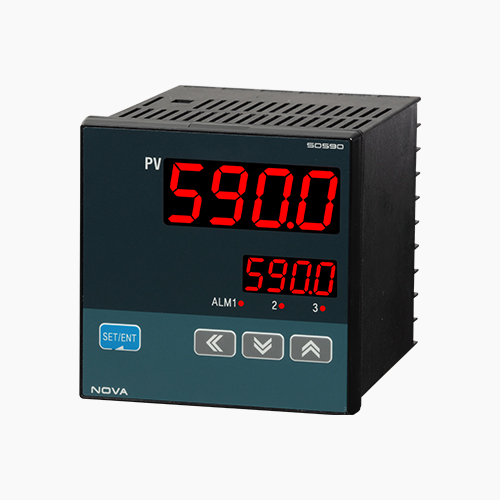

SD590
SD560

SD560

SD590

SD590

High accuracy digital indicator

NOVA500 SD SERIES

It is a high accuracy universal digital indicator.

  • High accuracy control with 18bit A/D convertor ±0.1% of full scale ±1 digit

    Reset function by the external input contact point

    Memory and display function of high and low temperature value

    1point transmission output, 3points alarm output

    Input piece bias function (Max. 4points)

    Various communication protocol support(Modbus and etc.)

Product Inquiry

FREE PC S/W

Support free PC S/W which can control/monitor the NOVA series on user PC, and improves user convenience and economics.

Group SD560 SD590
Size
96(W)×48(H)×100(L)
96(W)×96(H)×100(L)
PV/SP display
Each 5 digits
Sampling time
250ms
Analog input Type/Accuracy
1point(Universal input)/ ±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB)
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ
RTD
PT100(IEC), JPT100(JIS), 1/100 Displayable
DCV
-10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach)
Analog output Type
Fixing 1point
Output type
Retransmission output(PV) or loop power supply
SCR, RET
4 ~ 20mA DC, 0 ~ 20mA DC(Option)(Resistance : Max. 500Ω)/Accuracy: ±0.1%
Digital output Quantity
A : 2points + 2points
Specification
Max. 30V DC/1A, 250V AC/1A
Signal type
Alm 4points
Digital
input		 Specification
2points(Contact point capacity : Max. 12V DC, 10mA)
Function
Start PV Min./Max., Reset PV Min./Max.
Communication
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), PLC COMM., Max. 115,200bps
Power
100~240V AC, 50/60Hz, 10VA Max.

Model code

Model Additional code Contents Remark
SD5 □ 0 - 0 □ / □
Size
 9
96 * 96
6
96 * 48
Power
 0
100 ~ 240V AC
1
24V DC
Option
 RS
RS485
Att.1
DI
DI 2points
LPS
24V DC
Att.2
Att.1) RS/DI options cannot be consolidated
Att.2) 24V DC sensor power
1ManualInstruction manual
Communication manual
Software manual
2CatalogueCatalogue
3DimensionDimension
4SoftwareSoftware
