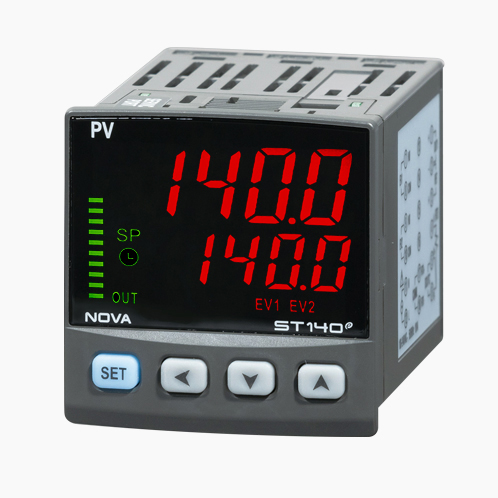

ST140E

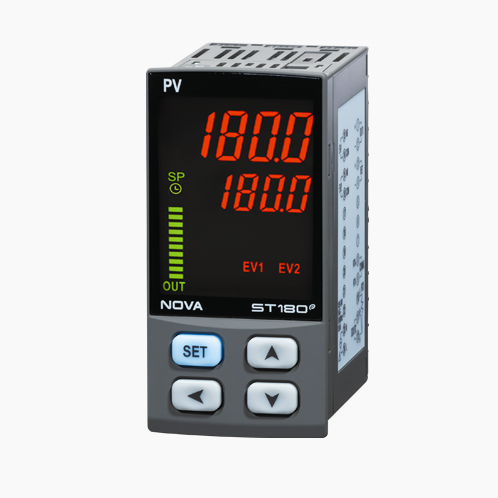

ST180E

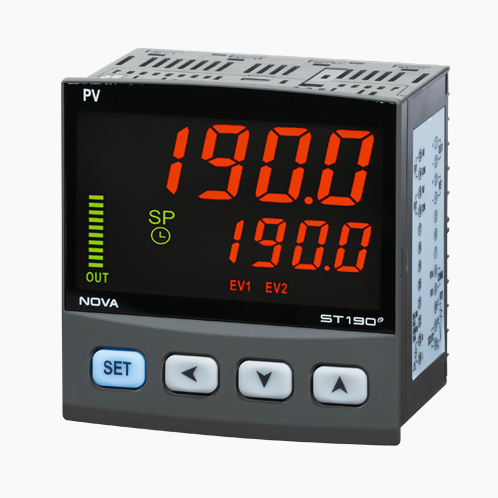

ST190E
NOVA100 ENHANCE
Economic general temperature controller
NOVA100e ST SERIES
It is an enhance model of the NOVA100 series, and is an economical universal temperature controller.
-
High Precision control with 18bit A/D convertor ±0.2% of full scale ±1 digit
Reserve function of Run/End
Power mode function (STOP, COLD, HOT)
Alarm output basic 1points(Max.2points)
Input piece bias funcion(Max. 4points)
Various communication protocol support (Modbus and etc.)
Compact Size
Compact and space-saving design.
Parameter Management
Simple Parameter setting and transition using PC S/W.
Built-In Reserve function of RUN and STOP(ST Series)
Reserve function of Run is to start control temperature after setting time(S-TM).
Reserve function of End is to stop control output when after pass the setting time(P-TM).
Programless Communication
Communicating with PLC without program, PLC is a communication port can be connected to up to 31 units.
| Group | ST140E | ST180E | ST190E | |
|---|---|---|---|---|
| Size | 48(W)×48(H)×79(L) |
48(W)×96(H)×68(L) |
96(W)×96(H)×68(L) |
|
| PV/SP display | Each 5 digits |
|||
| Sampling time | 250ms |
|||
| Control mode | Normal control |
|||
| PID control | 4 PID groups(3 Zone PID groups + 1 Deviation PID group) |
|||
| Analog input | Type/Accuracy | 1point(Universal input)/±0.2% of full scale ±1 digit (Inquire separately for PTC and JPTB) |
||
| TC | K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
|||
| RTD | PT100(IEC), JPT100(JIS), 1/100 Displayable |
|||
| DCV | -10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach) |
|||
| Analog output | Type | 1point |
||
| Output type | Control output |
|||
| SSR | 12V DC(Resistance: Min. 600Ω) |
|||
| SCR | 4 ~ 20mA DC(Resistance : Max. 500Ω)/Accuracy: ±0.3% |
|||
| Relay | Max. 30V DC/1A, 250V AC/1A |
|||
| Alarm relay output |
Quantity |
A : 1point+1point
|
||
| Specification |
Max. 30V DC/1A, 250V AC/1A
|
|||
| Alarm type |
Upper of PV, Lower of PV, Upper of deviation, Lower of deviation, High/Low deviation out of range, High/Low deviation within of range, Upper of TSP, Lower of TSP , Maintain 14 other types
|
|||
| Communication | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Sync(Master, Slave), PLC COMM., Max. 115,200bps |
|||
| Power | 100~240V AC, 50/60Hz, 10VA Max. |
|||
Model code
| Model | Additional code | Contents | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ST1 | □ | 0 | E | - | □ | □ | / | □ | ||
| 사이즈 |
9 | 96 * 96 |
||||||||
| 8 | 48 * 96 |
|||||||||
| 4 | 48 * 48 |
|||||||||
| Control method |
S | SSR |
||||||||
| A | SCR(4 ~ 20mA) |
|||||||||
| R | RELAY |
|||||||||
Power |
0 | 100 ~ 240V AC |
||||||||
| 1 | 24V DC |
|||||||||
Option |
ALM | RELAY 1point |
||||||||
| RS | RS485 |
|||||||||
| 1 | Manual | Instruction manual(Communication) | |
| Simple manual | |||
| SIMS Manual | |||
| PME Manual | |||
| 2 | Catalogue | Catalogue | |
| 3 | Dimension | Dimension | |
| 4 | Software | SIMS - Integrated communication software | |
| PME - Integrated parameter editor software | |||
| 5 | Executable file | SIMS, PME Additional files |
