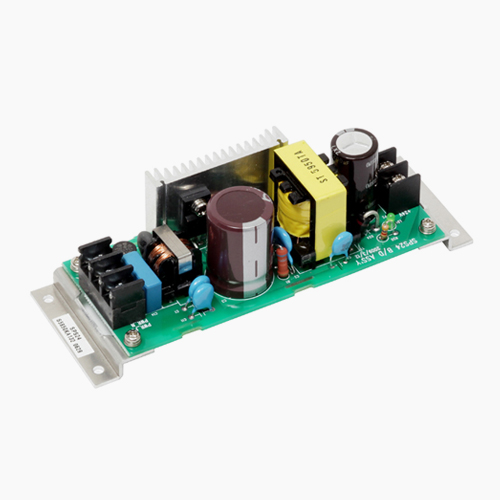

SPS24
24V DC电源供应器
SPS24
这是将输入电源AC转换为输出电源DC的开关方式电源供给装置。
-
输入85〜240V AC，输出24V DC(0.8A)
.
| Group | Specification | |
|---|---|---|
| Input | Power | 85~250VAC |
| Frequency | 50/60Hz |
|
| Output | Current | 1A |
| Power | 24VDC |
|
| Ripple | Max. 240mVp-p |
|
| Specification | In/Output | 1500VAC 1MIN 500VDC 100MΩ (Room temperature) |
| Operating environment | -10~+50℃, 20~90%RH (Without condensation) |
|
| Storage environment | -20~+75℃, 20~90%RH (Without condensation) |
|
| Vibration | IN 3Min 10Hz 1.0G, Compete in a 3-axis direction orthogonal to the 30 minutes vibration |
|
| 1 | 外观尺寸 | 外观尺寸 |
